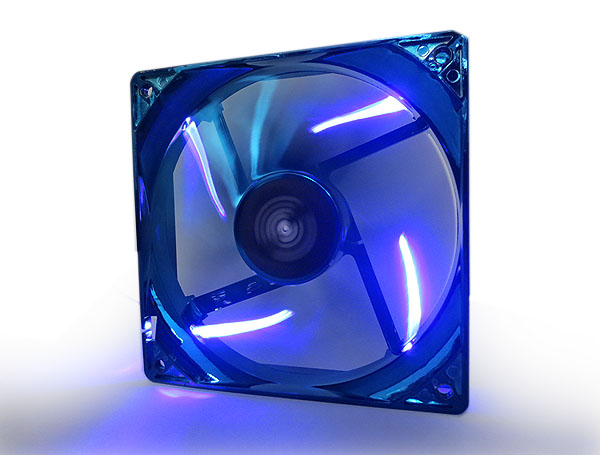

b-Ice Series
Low noise level with excellent airflow. Shining surface enhances better lighting effect.
Features
Models / Colors and Accessories
Features
- Choice of Blue Chrome coating
- Low noise level with excellent airflow
- Shining surface enhances better lighting effect
- 3 pins connector directly connected to motherboard
- 4 pins molex connector directly connected to power supplies
- 4 x Blue LEDs
- 4 screws included
Models / Colors and Accessories

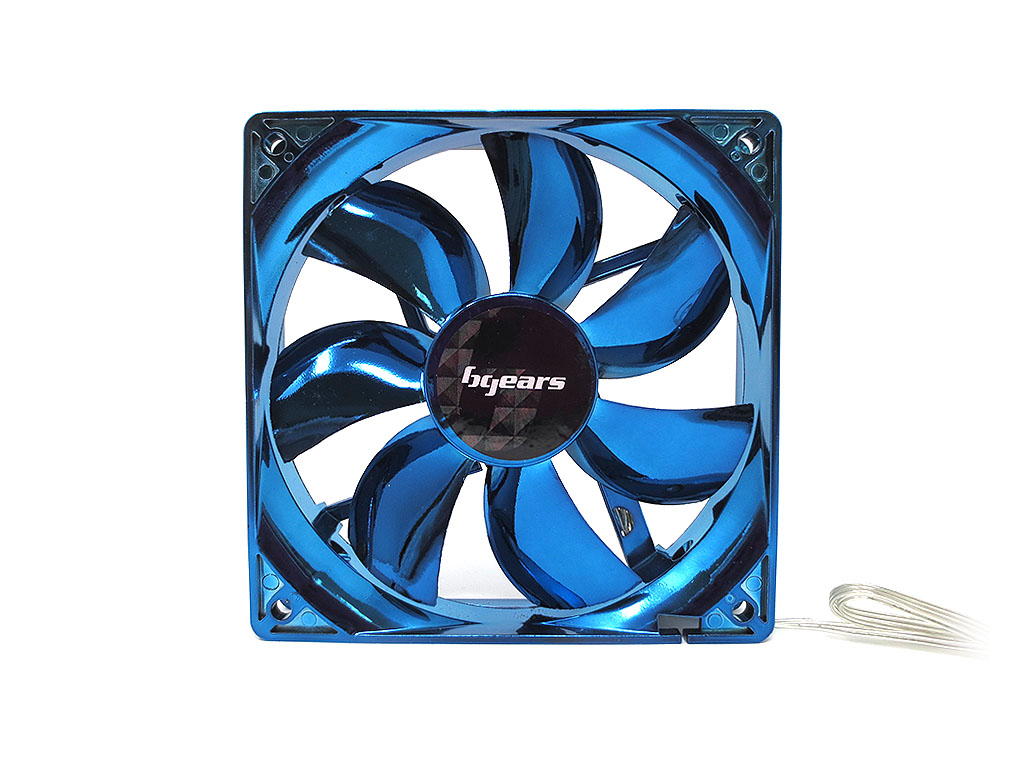

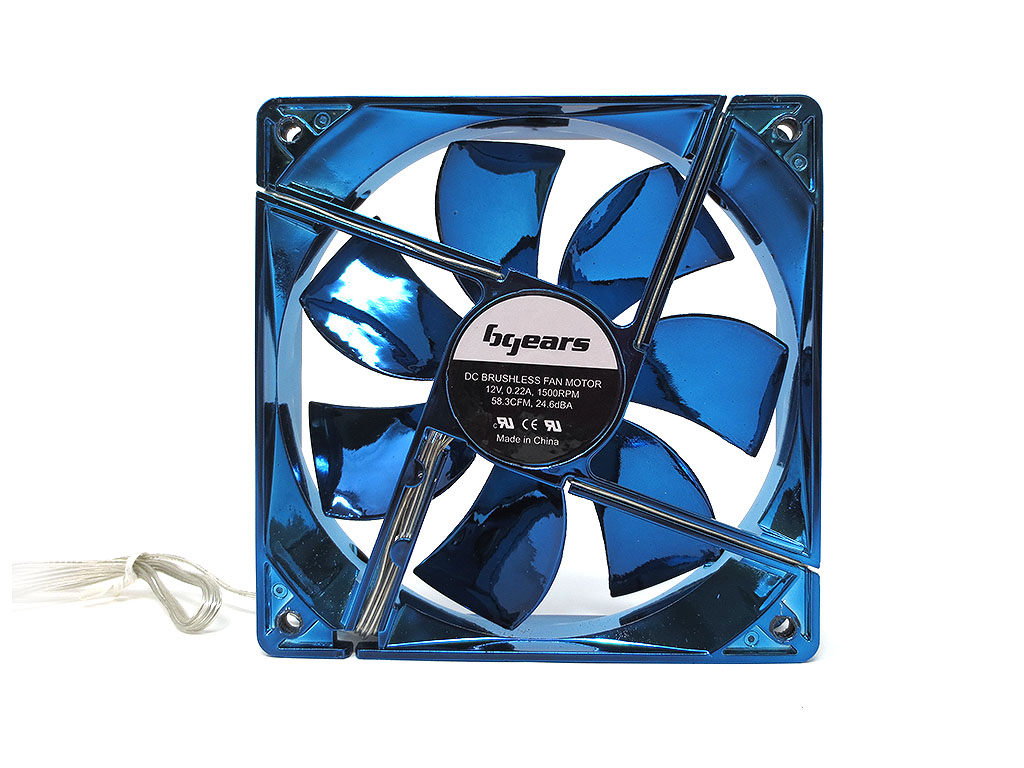

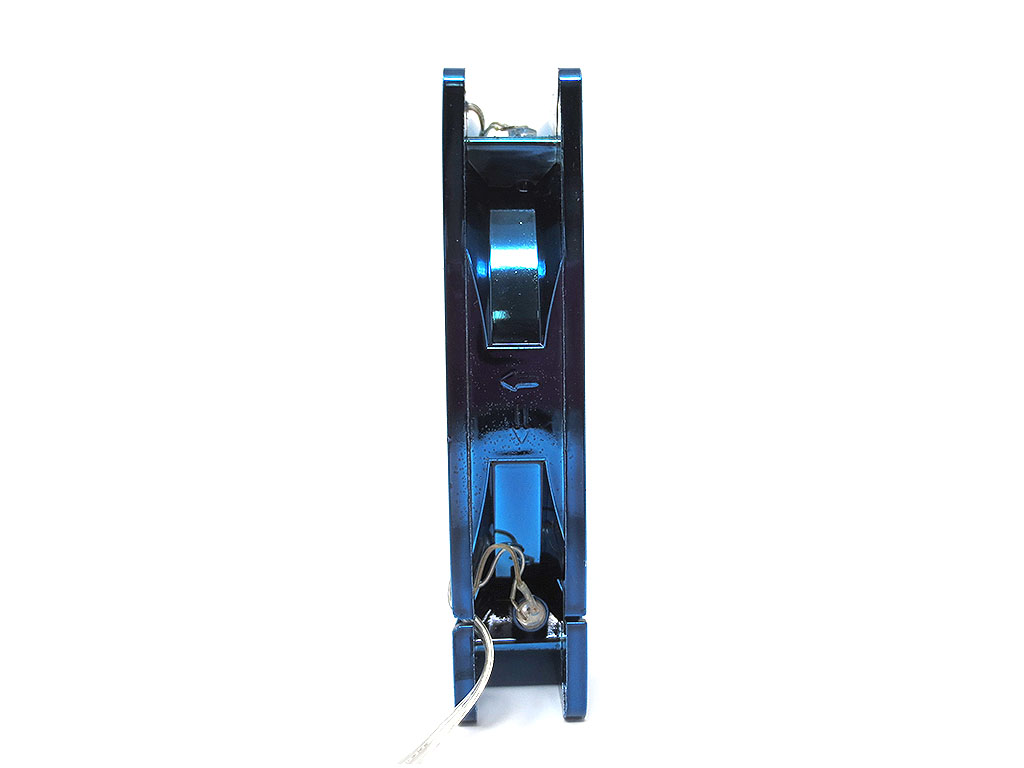

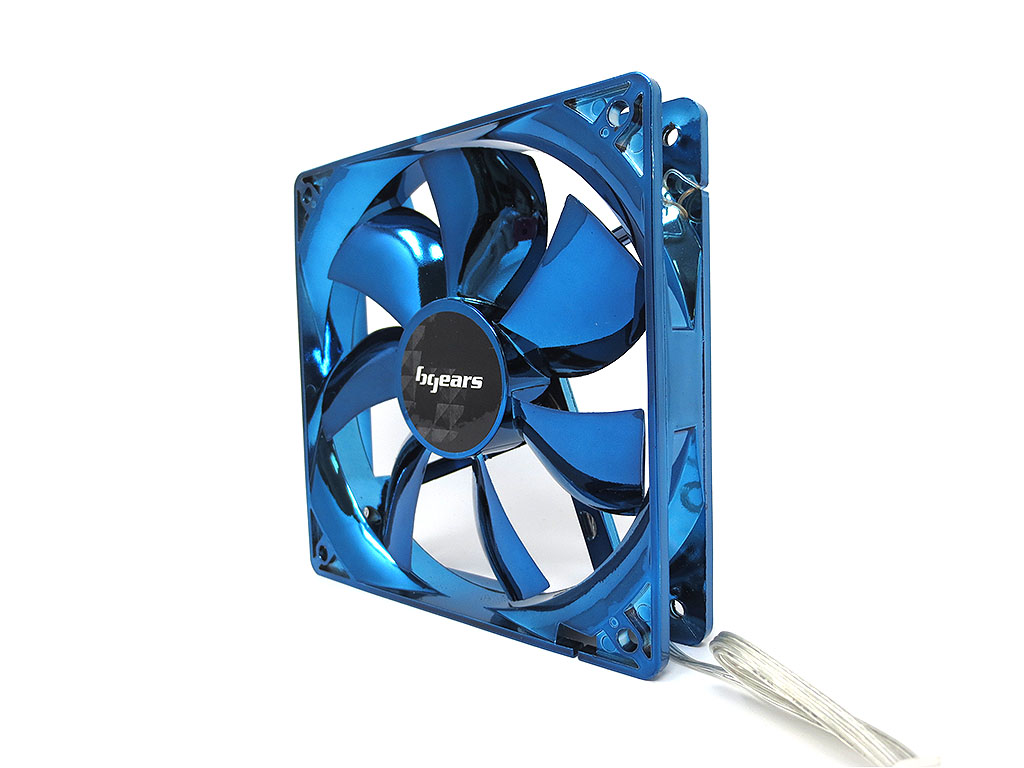

- b-Ice 120mm/ Blue Chrome Frame and Blue LED

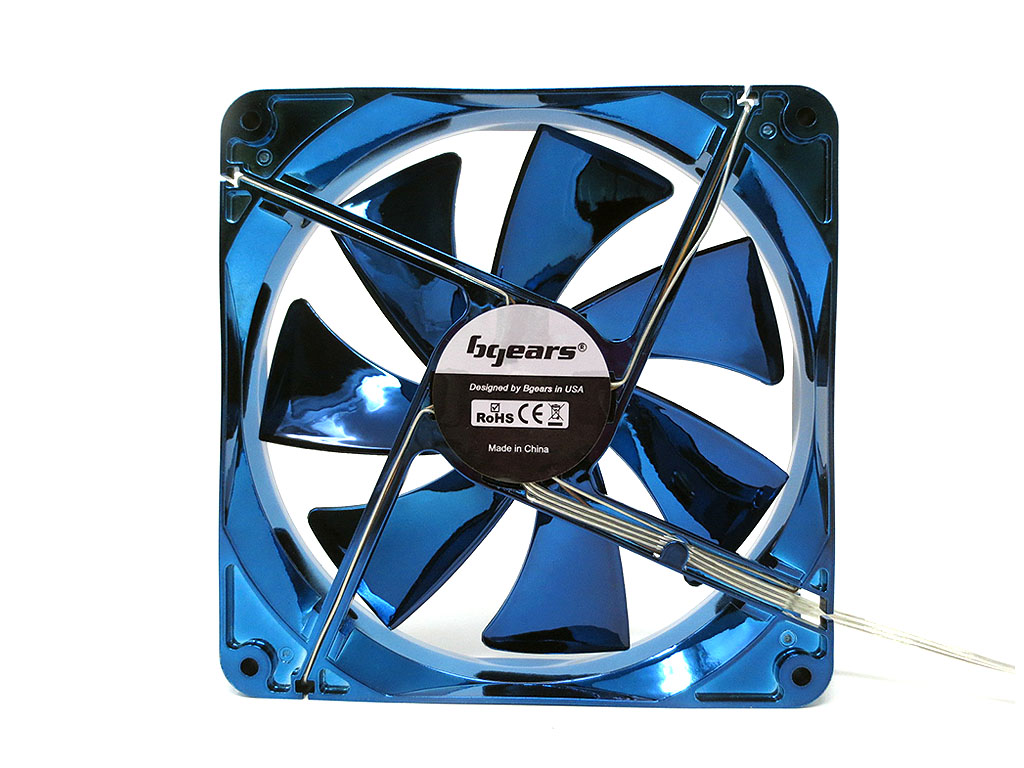

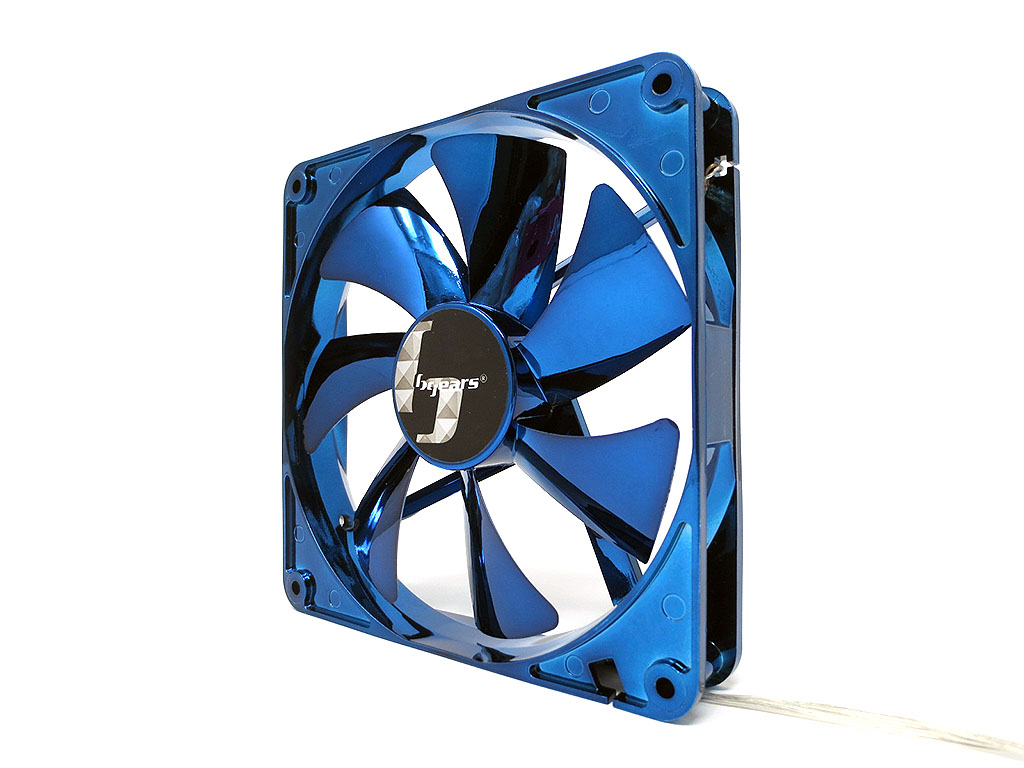

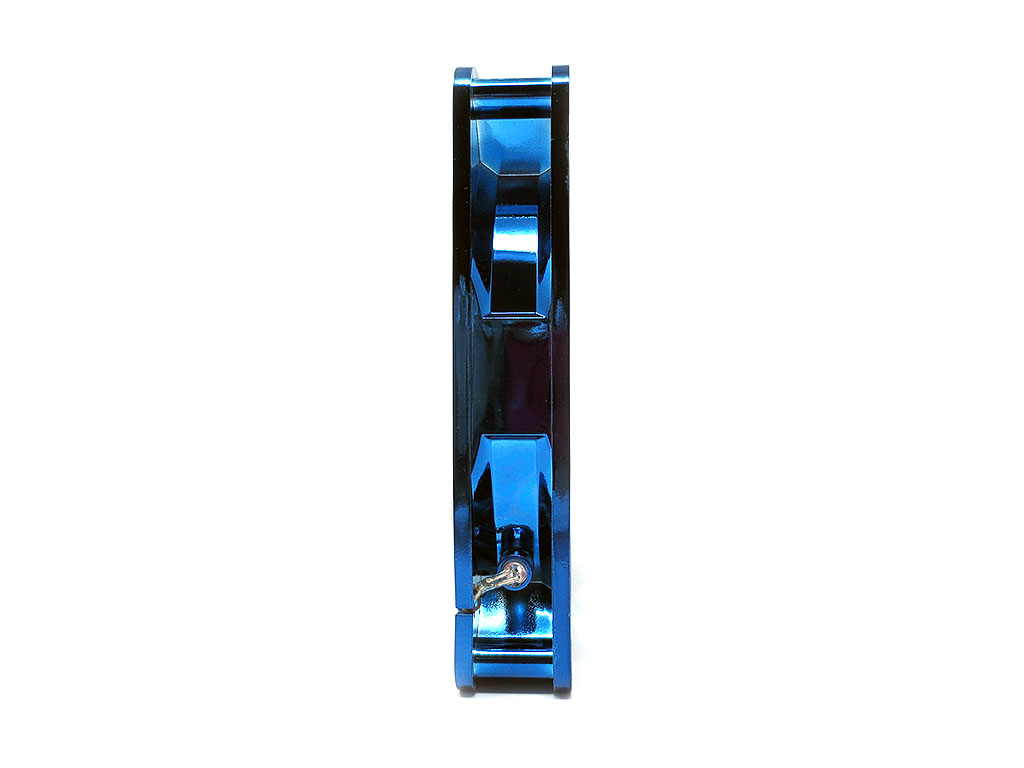

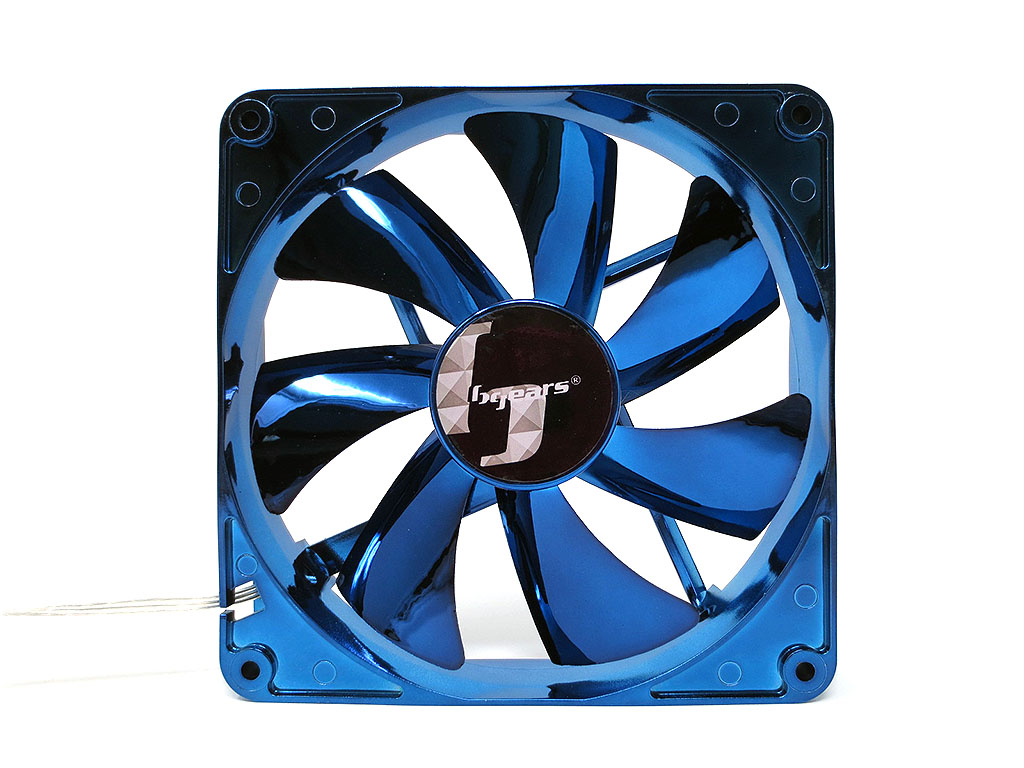

- b-Ice 140mm/ Blue Chrome Frame and Blue LED

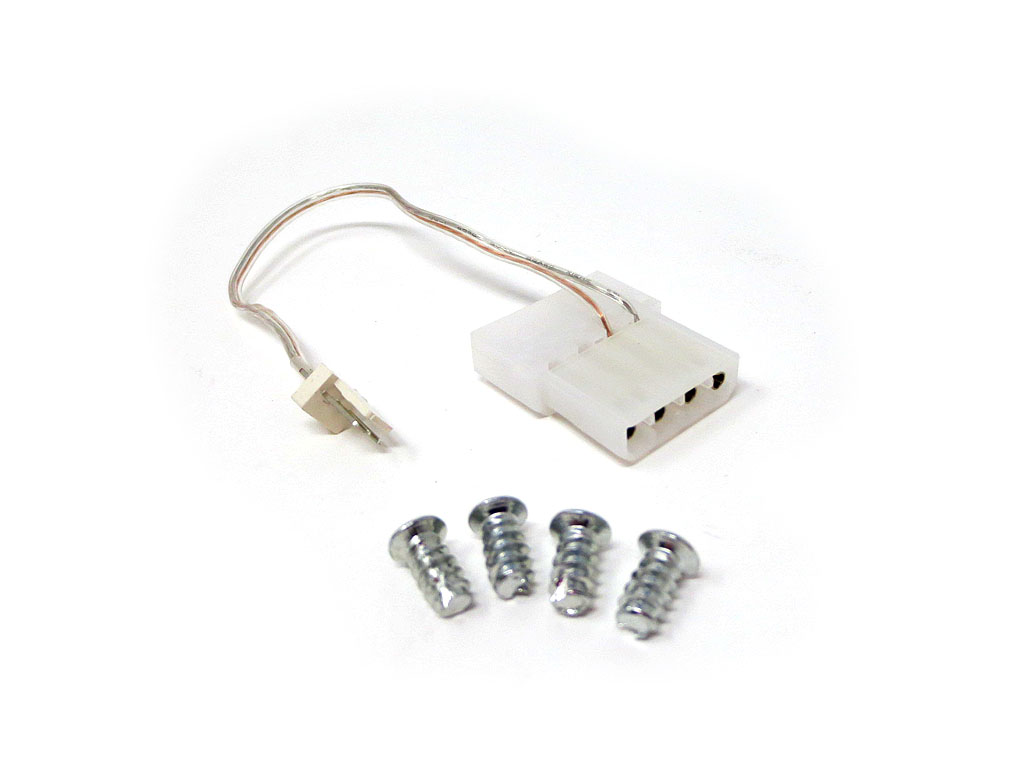

- Include one 3 to 4 pins connector and 4 screws
| b-Ice | 120mm | 140mm |
|---|---|---|
| Speed(RPM): | 1500±10% | 1500±10% |
| Airflow(CFM): | 58.3±10% (max) | 83.0±10% (max) |
| Rated Voltage(V): | 12 | 12 |
| Operating Voltage(V): | 10.2-13.8 VDC | 10.2-13.8 VDC |
| Noise(dbA): | 24.6 | 29 |
| Operating Temperature.: | -10°C to +70°C | -10°C to +70°C |
| Frame Size(mm): | 120x120x25 | 140x140x25 |
| Bearing: | Sleeve | Sleeve |
| LED: | Blue | Blue |
| Weight(g): | 137 | 150 |
| UPC Code: | 853704001084 | 853704001572 |
| Product Number: | BG01084 | BG01572 |
Connection
The Bgears Fan (Depending on the model) comes with either a 3-pin connector (Like the b-Blaster Series), or 4-pin PWM (Like the b-PWM series) fan connector for fully automatic speed control via your mainboard’s 4-pin PWM fan headers.
Please check the model you have purchased to verify the type of connector the fan is designed for. The package also come with a 3-pin to 4-pin Molex adapter. This Adapter is to convert the existing 3-pin or 4pin fan connector on the fan into a 4-pin Molex connector so it can be connected directly to a power source that come in 4-pin Molex type connector.
